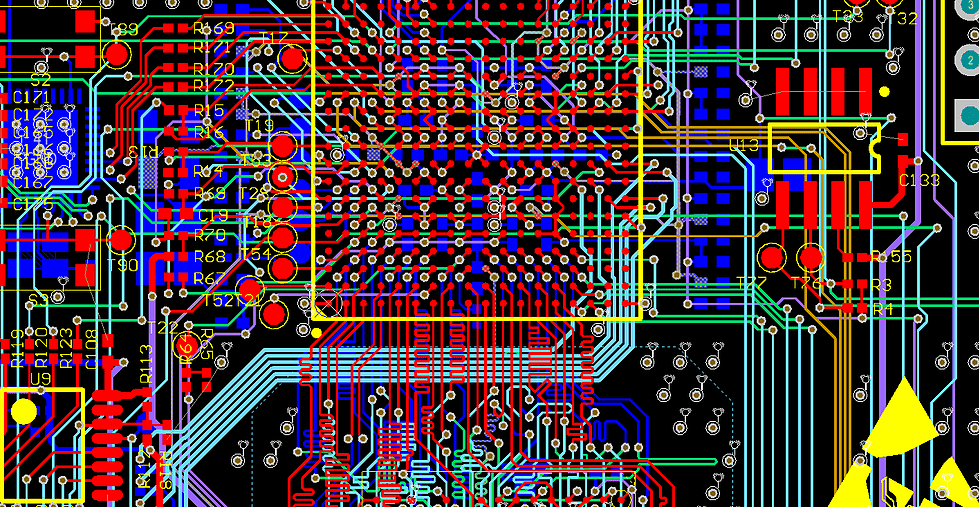

Design your boards correctly from the start
Every PCB should be designed in such a way that the overall cost and chances of potential DFM issues can be minimized.Our team of designers understand how to reduce risk and cost optimization throughout each of these phases.
Excellent PCB Design can help you :
- Reduce costs
- Improve PCBA performance
- Improve security and reliability
- Reduce the risk of errors in the PCB manufacturing process
| Category | File Desc |
|---|---|
For PCB Manufacturing | Gerber files |
NC Excellon Drill File | |
Fabrication drawings | |
Testpoint report | |
For PCB Assembly | Bill of materials (BOM) |
Pick and Place files | |
Assembly drawings | |
Other Files | Schematics drawings |
3D files | |
Special assembly instructions |
Deliverables
By the end of the PCB solution design process, a wealth of design and manufacturing data will have been generated by an entire team of designers and engineers.

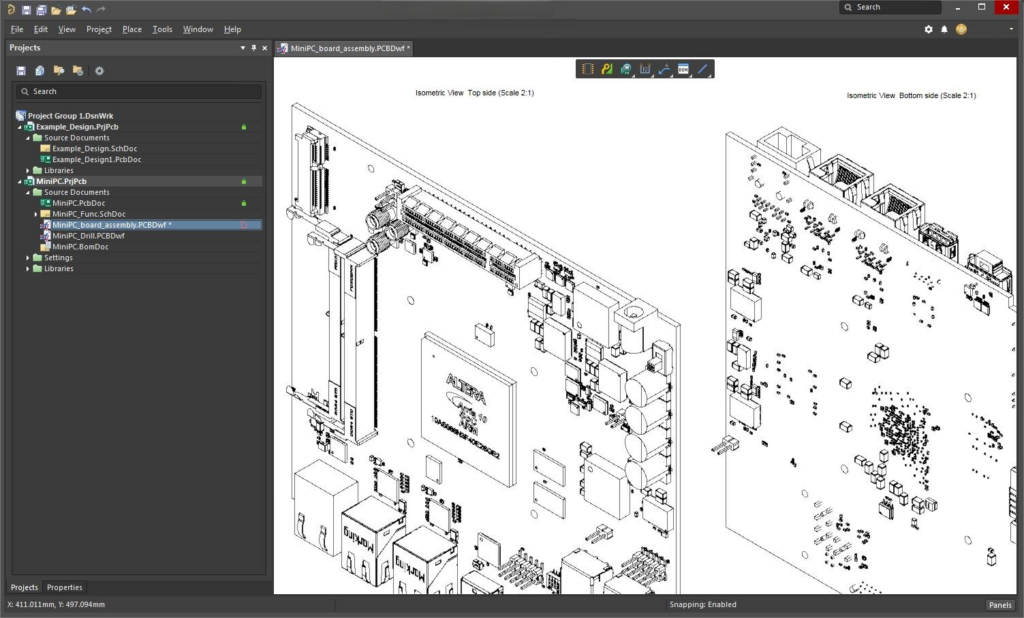

The PCB Design Process
Throughout the design process, we’ll collaborate with you on any required design changes and provide suggestions to improve your new product.
- Schematic Capture
- PCB Stackup Design
- PCB Layout and Routing
- Verification in Simulations
- PCB Design Review
- PCB Manufacturing File Creation
Experts at Complex Boards
We had rich experience in design for multilayer, high complexity, highly dense and special materials PCB.
We’ve developed hundreds of devices across multiple industries so we have the ability to craft an expert solution for your project. We are happy to make small changes or complete large complex designs.
Let’s work together
We will respond to you within 12 hours. Feel free to reach out to us for:
- Electronic project consultation
- New user question
- Professional engineer answers
- Get a quote
